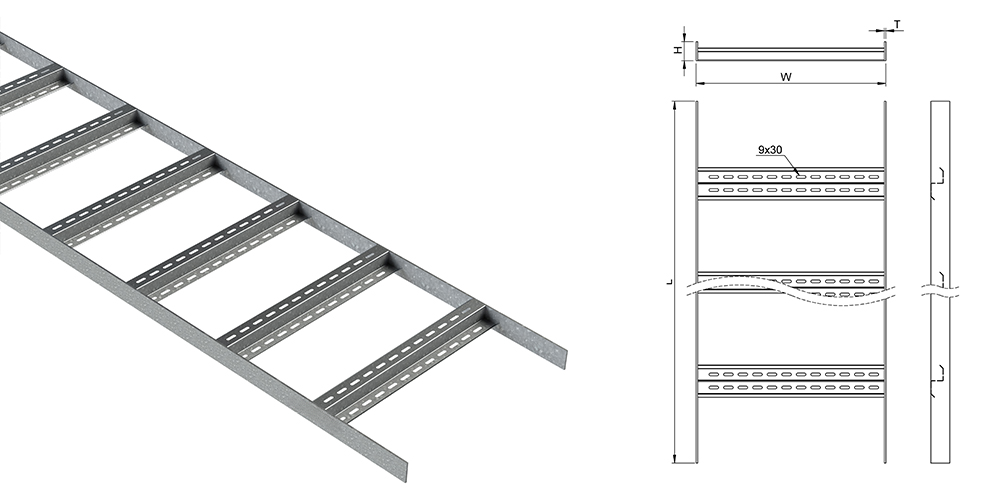

CTML SERIES Marine Type Cable Ladders
- Type: Marine Type
- Property: Designed for the shipping industry
- Code: CTML
- Advantages: Solutions suitable for the sector
- Thicness: 5,00 mm
- Width: 100 – 600 mm
- Product weights are approximate values, may vary by ± 10%.
- Product weights on the table reflect the weights of products coated with hot dip galvanizing method.
- Standard lengths are 2500 mm and 3000 mm.
- Please contact to your customer representative for detailed information and for your demands with special dimensions.
Technical Tables
# | Product Code | Product Description | T (mm) | W (mm) | H (mm) | Unit Weight(kg/m) |
1 | CTML-10040-500 | Marine Type Cable Ladders | 4.0 | 100 | 40 | 3.737 |
2 | CTML-20040-500 | Marine Type Cable Ladders | 4.0 | 20 | 40 | 4.219 |
3 | CTML-30040-500 | Marine Type Cable Ladders | 4.0 | 300 | 40 | 4.693 |
4 | CTML-40040-500 | Marine Type Cable Ladders | 4.0 | 400 | 40 | 5.174 |
5 | CTML-50040-500 | Marine Type Cable Ladders | 4.0 | 500 | 40 | 5.656 |
6 | CTML-60040-500 | Marine Type Cable Ladders | 4.0 | 600 | 40 | 6.944 |
# | Product Code | Product Description | T (mm) | W (mm) | H (mm) | Unit Weight(kg/m) |
1 | CTML-10050-500 | Marine Type Cable Ladders | 5.0 | 100 | 50 | 4.550 |
2 | CTML-20050-500 | Marine Type Cable Ladders | 5.0 | 200 | 50 | 5.033 |
3 | CTML-30050-500 | Marine Type Cable Ladders | 5.0 | 300 | 50 | 5.506 |
4 | CTML-40050-500 | Marine Type Cable Ladders | 5.0 | 400 | 50 | 5.988 |
5 | CTML-50050-500 | Marine Type Cable Ladders | 5.0 | 500 | 50 | 6.470 |
6 | CTML-60050-500 | Marine Type Cable Ladders | 5.0 | 600 | 50 | 6.944 |
