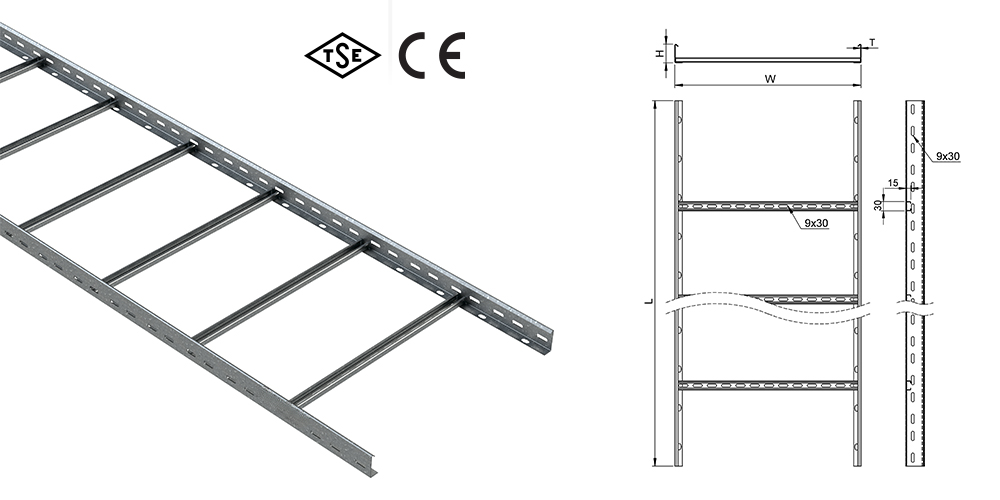

CTL SERIES Medium Heavy Duty Cable Ladders
- Type: Heavy Duty
- Property: Widely accepted design in various sectors
- Code: CTL
- Advantages: Cost
- Thicness: 0.80 - 2.00 mm
- Width: 50-900 mm
Technical Tables
# | Product Code | Product Description | T (mm) | W (mm) | H (mm) | Unit Weight(kg/m) |
1 | CTL-10040-150 | Medium Heavy Duty Cable Ladders | 1.5 | 100 | 40 | 2.119 |
2 | CTL-10040-200 | Medium Heavy Duty Cable Ladders | 2.0 | 100 | 40 | 2.695 |
3 | CTL-15040-150 | Medium Heavy Duty Cable Ladders | 1.5 | 150 | 40 | 2.272 |
4 | CTL-15040-200 | Medium Heavy Duty Cable Ladders | 2.0 | 150 | 40 | 2.849 |
5 | CTL-20040-150 | Medium Heavy Duty Cable Ladders | 1.5 | 200 | 40 | 2.426 |
6 | CTL-20040-200 | Medium Heavy Duty Cable Ladders | 2.0 | 200 | 40 | 3.003 |
7 | CTL-25040-150 | Medium Heavy Duty Cable Ladders | 1.5 | 250 | 40 | 2.579 |
8 | CTL-25040-200 | Medium Heavy Duty Cable Ladders | 2.0 | 250 | 40 | 3.157 |
9 | CTL-30040-150 | Medium Heavy Duty Cable Ladders | 1.5 | 300 | 40 | 2.732 |
10 | CTL-30040-200 | Medium Heavy Duty Cable Ladders | 2.0 | 300 | 40 | 3.311 |
11 | CTL-40040-150 | Medium Heavy Duty Cable Ladders | 1.5 | 400 | 40 | 3.038 |
12 | CTL-40040-200 | Medium Heavy Duty Cable Ladders | 2.0 | 400 | 40 | 3.619 |
13 | CTL-45040-150 | Medium Heavy Duty Cable Ladders | 1.5 | 450 | 40 | 3.195 |
14 | CTL-45040-200 | Medium Heavy Duty Cable Ladders | 2.0 | 450 | 40 | 3.776 |
15 | CTL-50040-150 | Medium Heavy Duty Cable Ladders | 1.5 | 500 | 40 | 3.345 |
16 | CTL-50040-200 | Medium Heavy Duty Cable Ladders | 2.0 | 500 | 40 | 3.927 |
17 | CTL-60040-150 | Medium Heavy Duty Cable Ladders | 1.5 | 600 | 40 | 3.651 |
18 | CTL-60040-200 | Medium Heavy Duty Cable Ladders | 2.0 | 600 | 40 | 4.235 |
19 | CTL-75040-150 | Medium Heavy Duty Cable Ladders | 1.5 | 750 | 40 | 4.114 |
20 | CTL-75040-200 | Medium Heavy Duty Cable Ladders | 2.0 | 750 | 40 | 4.700 |
21 | CTL-90040-150 | Medium Heavy Duty Cable Ladders | 1.5 | 900 | 40 | 4.577 |
22 | CTL-90040-200 | Medium Heavy Duty Cable Ladders | 2.0 | 900 | 40 | 5.166 |
# | Product Code | Product Description | T (mm) | W (mm) | H (mm) | Unit Weight(kg/m) |
1 | CTL-10050-150 | Medium Heavy Duty Cable Ladders | 1.5 | 100 | 50 | 2.375 |
2 | CTL-10050-200 | Medium Heavy Duty Cable Ladders | 2.0 | 100 | 50 | 3.030 |
3 | CTL-15050-150 | Medium Heavy Duty Cable Ladders | 1.5 | 150 | 50 | 2.528 |
4 | CTL-15050-200 | Medium Heavy Duty Cable Ladders | 2.0 | 150 | 50 | 3.184 |
5 | CTL-20050-150 | Medium Heavy Duty Cable Ladders | 1.5 | 200 | 50 | 2.681 |
6 | CTL-20050-200 | Medium Heavy Duty Cable Ladders | 2.0 | 200 | 50 | 3.338 |
7 | CTL-25050-150 | Medium Heavy Duty Cable Ladders | 1.5 | 250 | 50 | 2.834 |
8 | CTL-25050-200 | Medium Heavy Duty Cable Ladders | 2.0 | 250 | 50 | 3.492 |
9 | CTL-30050-150 | Medium Heavy Duty Cable Ladders | 1.5 | 300 | 50 | 2.987 |
10 | CTL-30050-200 | Medium Heavy Duty Cable Ladders | 2.0 | 300 | 50 | 3.646 |
11 | CTL-40050-150 | Medium Heavy Duty Cable Ladders | 1.5 | 400 | 50 | 3.294 |
12 | CTL-40050-200 | Medium Heavy Duty Cable Ladders | 2.0 | 400 | 50 | 3.955 |
13 | CTL-45050-150 | Medium Heavy Duty Cable Ladders | 1.5 | 450 | 50 | 3.450 |
14 | CTL-45050-200 | Medium Heavy Duty Cable Ladders | 2.0 | 450 | 50 | 4.112 |
15 | CTL-50050-150 | Medium Heavy Duty Cable Ladders | 1.5 | 500 | 50 | 3.600 |
16 | CTL-50050-200 | Medium Heavy Duty Cable Ladders | 2.0 | 500 | 50 | 4.263 |
17 | CTL-60050-150 | Medium Heavy Duty Cable Ladders | 1.5 | 600 | 50 | 3.907 |
18 | CTL-60050-200 | Medium Heavy Duty Cable Ladders | 2.0 | 600 | 50 | 4.571 |
19 | CTL-75050-150 | Medium Heavy Duty Cable Ladders | 1.5 | 750 | 50 | 4.369 |
20 | CTL-75050-200 | Medium Heavy Duty Cable Ladders | 2.0 | 750 | 50 | 5.036 |
21 | CTL-90050-150 | Medium Heavy Duty Cable Ladders | 1.5 | 900 | 50 | 4.832 |
22 | CTL-90050-200 | Medium Heavy Duty Cable Ladders | 2.0 | 900 | 50 | 5.501 |
# | Product Code | Product Description | T (mm) | W (mm) | H (mm) | Unit Weight(kg/m) |
1 | CTL-10060-150 | Medium Heavy Duty Cable Ladders | 1.5 | 100 | 60 | 2.630 |
2 | CTL-10060-200 | Medium Heavy Duty Cable Ladders | 2.0 | 100 | 60 | 3.366 |
3 | CTL-15060-150 | Medium Heavy Duty Cable Ladders | 1.5 | 150 | 60 | 2.783 |
4 | CTL-15060-200 | Medium Heavy Duty Cable Ladders | 2.0 | 150 | 60 | 3.520 |
5 | CTL-20060-150 | Medium Heavy Duty Cable Ladders | 1.5 | 200 | 60 | 2.937 |
6 | CTL-20060-200 | Medium Heavy Duty Cable Ladders | 2.0 | 200 | 60 | 3.674 |
7 | CTL-25060-150 | Medium Heavy Duty Cable Ladders | 1.5 | 250 | 60 | 3.090 |
8 | CTL-25060-200 | Medium Heavy Duty Cable Ladders | 2.0 | 250 | 60 | 3.828 |
9 | CTL-30060-150 | Medium Heavy Duty Cable Ladders | 1.5 | 300 | 60 | 3.243 |
10 | CTL-30060-200 | Medium Heavy Duty Cable Ladders | 2.0 | 300 | 60 | 3.982 |
11 | CTL-40060-150 | Medium Heavy Duty Cable Ladders | 1.5 | 400 | 60 | 3.549 |
12 | CTL-40060-200 | Medium Heavy Duty Cable Ladders | 2.0 | 400 | 60 | 4.290 |
13 | CTL-45060-150 | Medium Heavy Duty Cable Ladders | 1.5 | 450 | 60 | 3.706 |
14 | CTL-45060-200 | Medium Heavy Duty Cable Ladders | 2.0 | 450 | 60 | 4.447 |
15 | CTL-50060-150 | Medium Heavy Duty Cable Ladders | 1.5 | 500 | 60 | 3.856 |
16 | CTL-50060-200 | Medium Heavy Duty Cable Ladders | 2.0 | 500 | 60 | 4.598 |
17 | CTL-60060-150 | Medium Heavy Duty Cable Ladders | 1.5 | 600 | 60 | 4.162 |
18 | CTL-60060-200 | Medium Heavy Duty Cable Ladders | 2.0 | 600 | 60 | 4.906 |
19 | CTL-75060-150 | Medium Heavy Duty Cable Ladders | 1.5 | 750 | 60 | 4.625 |
20 | CTL-75060-200 | Medium Heavy Duty Cable Ladders | 2.0 | 750 | 60 | 5.372 |
21 | CTL-90060-150 | Medium Heavy Duty Cable Ladders | 1.5 | 900 | 60 | 5.088 |
22 | CTL-90060-200 | Medium Heavy Duty Cable Ladders | 2.0 | 900 | 60 | 5.837 |
# | Product Code | Product Description | T (mm) | W (mm) | H (mm) | Unit Weight(kg/m) |
1 | CTL-10075-150 | Medium Heavy Duty Cable Ladders | 1.5 | 100 | 75 | 2.931 |
2 | CTL-10075-200 | Medium Heavy Duty Cable Ladders | 2.0 | 100 | 75 | 3.761 |
3 | CTL-15075-150 | Medium Heavy Duty Cable Ladders | 1.5 | 150 | 75 | 3.084 |
4 | CTL-15075-200 | Medium Heavy Duty Cable Ladders | 2.0 | 150 | 75 | 3.915 |
5 | CTL-20075-150 | Medium Heavy Duty Cable Ladders | 1.5 | 200 | 75 | 3.237 |
6 | CTL-20075-200 | Medium Heavy Duty Cable Ladders | 2.0 | 200 | 75 | 4.069 |
7 | CTL-25075-150 | Medium Heavy Duty Cable Ladders | 1.5 | 250 | 75 | 3.391 |
8 | CTL-25075-200 | Medium Heavy Duty Cable Ladders | 2.0 | 250 | 75 | 4.223 |
9 | CTL-30075-150 | Medium Heavy Duty Cable Ladders | 1.5 | 300 | 75 | 3.544 |
10 | CTL-30075-200 | Medium Heavy Duty Cable Ladders | 2.0 | 300 | 75 | 4.377 |
11 | CTL-40075-150 | Medium Heavy Duty Cable Ladders | 1.5 | 400 | 75 | 3.850 |
12 | CTL-40075-200 | Medium Heavy Duty Cable Ladders | 2.0 | 400 | 75 | 4.685 |
13 | CTL-45075-150 | Medium Heavy Duty Cable Ladders | 1.5 | 450 | 75 | 4.007 |
14 | CTL-45075-200 | Medium Heavy Duty Cable Ladders | 2.0 | 450 | 75 | 4.842 |
15 | CTL-50075-150 | Medium Heavy Duty Cable Ladders | 1.5 | 500 | 75 | 4.156 |
16 | CTL-50075-200 | Medium Heavy Duty Cable Ladders | 2.0 | 500 | 75 | 4.993 |
17 | CTL-60075-150 | Medium Heavy Duty Cable Ladders | 1.5 | 600 | 75 | 4.463 |
18 | CTL-60075-200 | Medium Heavy Duty Cable Ladders | 2.0 | 600 | 75 | 5.301 |
19 | CTL-75075-150 | Medium Heavy Duty Cable Ladders | 1.5 | 750 | 75 | 4.926 |
20 | CTL-75075-200 | Medium Heavy Duty Cable Ladders | 2.0 | 750 | 75 | 5.766 |
21 | CTL-90075-150 | Medium Heavy Duty Cable Ladders | 1.5 | 900 | 75 | 5.388 |
22 | CTL-90075-200 | Medium Heavy Duty Cable Ladders | 2.0 | 900 | 75 | 6.231 |
# | Product Code | Product Description | T (mm) | W (mm) | H (mm) | Unit Weight(kg/m) |
1 | CTL-100100-150 | Medium Heavy Duty Cable Ladders | 1.5 | 100 | 100 | 3.570 |
2 | CTL-100100-200 | Medium Heavy Duty Cable Ladders | 2.0 | 100 | 100 | 4.600 |
3 | CTL-150100-150 | Medium Heavy Duty Cable Ladders | 1.5 | 150 | 100 | 3.723 |
4 | CTL-150100-200 | Medium Heavy Duty Cable Ladders | 2.0 | 150 | 100 | 4.754 |
5 | CTL-200100-150 | Medium Heavy Duty Cable Ladders | 1.5 | 200 | 100 | 3.876 |
6 | CTL-200100-200 | Medium Heavy Duty Cable Ladders | 2.0 | 200 | 100 | 4.908 |
7 | CTL-250100-150 | Medium Heavy Duty Cable Ladders | 1.5 | 250 | 100 | 4.029 |
8 | CTL-250100-200 | Medium Heavy Duty Cable Ladders | 2.0 | 250 | 100 | 5.062 |
9 | CTL-300100-150 | Medium Heavy Duty Cable Ladders | 1.5 | 300 | 100 | 4.183 |
10 | CTL-300100-200 | Medium Heavy Duty Cable Ladders | 2.0 | 300 | 100 | 5.216 |
11 | CTL-400100-150 | Medium Heavy Duty Cable Ladders | 1.5 | 400 | 100 | 4.489 |
12 | CTL-400100-200 | Medium Heavy Duty Cable Ladders | 2.0 | 400 | 100 | 5.524 |
13 | CTL-450100-150 | Medium Heavy Duty Cable Ladders | 1.5 | 450 | 100 | 4.645 |
14 | CTL-450100-200 | Medium Heavy Duty Cable Ladders | 2.0 | 450 | 100 | 5.681 |
15 | CTL-500100-150 | Medium Heavy Duty Cable Ladders | 1.5 | 500 | 100 | 4.795 |
16 | CTL-500100-200 | Medium Heavy Duty Cable Ladders | 2.0 | 500 | 100 | 5.832 |
17 | CTL-600100-150 | Medium Heavy Duty Cable Ladders | 1.5 | 600 | 100 | 5.102 |
18 | CTL-600100-200 | Medium Heavy Duty Cable Ladders | 2.0 | 600 | 100 | 6.140 |
19 | CTL-750100-150 | Medium Heavy Duty Cable Ladders | 1.5 | 750 | 100 | 5.564 |
20 | CTL-750100-200 | Medium Heavy Duty Cable Ladders | 2.0 | 750 | 100 | 6.605 |
21 | CTL-900100-150 | Medium Heavy Duty Cable Ladders | 1.5 | 900 | 100 | 6.027 |
22 | CTL-900100-200 | Medium Heavy Duty Cable Ladders | 2.0 | 900 | 100 | 7.070 |
# | Product Code | Product Description | T (mm) | W (mm) | H (mm) | Unit Weight(kg/m) |
1 | CTL-100150-150 | Medium Heavy Duty Cable Ladders | 1.5 | 100 | 150 | 4.765 |
2 | CTL-100150-200 | Medium Heavy Duty Cable Ladders | 2.0 | 100 | 150 | 6.169 |
3 | CTL-150150-150 | Medium Heavy Duty Cable Ladders | 1.5 | 150 | 150 | 4.918 |
4 | CTL-150150-200 | Medium Heavy Duty Cable Ladders | 2.0 | 150 | 150 | 6.323 |
5 | CTL-200150-150 | Medium Heavy Duty Cable Ladders | 1.5 | 200 | 150 | 5.071 |
6 | CTL-200150-200 | Medium Heavy Duty Cable Ladders | 2.0 | 200 | 150 | 6.477 |
7 | CTL-250150-150 | Medium Heavy Duty Cable Ladders | 1.5 | 250 | 150 | 5.224 |
8 | CTL-250150-200 | Medium Heavy Duty Cable Ladders | 2.0 | 250 | 150 | 6.631 |
9 | CTL-300150-150 | Medium Heavy Duty Cable Ladders | 1.5 | 300 | 150 | 5.378 |
10 | CTL-300150-200 | Medium Heavy Duty Cable Ladders | 2.0 | 300 | 150 | 6.785 |
11 | CTL-400150-150 | Medium Heavy Duty Cable Ladders | 1.5 | 400 | 150 | 5.684 |
12 | CTL-400150-200 | Medium Heavy Duty Cable Ladders | 2.0 | 400 | 150 | 7.093 |
13 | CTL-450150-150 | Medium Heavy Duty Cable Ladders | 1.5 | 450 | 150 | 5.840 |
14 | CTL-450150-200 | Medium Heavy Duty Cable Ladders | 2.0 | 450 | 150 | 7.250 |
15 | CTL-500150-150 | Medium Heavy Duty Cable Ladders | 1.5 | 500 | 150 | 5.990 |
16 | CTL-500150-200 | Medium Heavy Duty Cable Ladders | 2.0 | 500 | 150 | 7.401 |
17 | CTL-600150-150 | Medium Heavy Duty Cable Ladders | 1.5 | 600 | 150 | 6.297 |
18 | CTL-600150-200 | Medium Heavy Duty Cable Ladders | 2.0 | 600 | 150 | 7.709 |
19 | CTL-750150-150 | Medium Heavy Duty Cable Ladders | 1.5 | 750 | 150 | 6.759 |
20 | CTL-750150-200 | Medium Heavy Duty Cable Ladders | 2.0 | 750 | 150 | 8.174 |
21 | CTL-900150-150 | Medium Heavy Duty Cable Ladders | 1.5 | 900 | 150 | 7.222 |
22 | CTL-900150-200 | Medium Heavy Duty Cable Ladders | 2.0 | 900 | 150 | 8.639 |
- Product weights are approximate values, may vary by ± 10%.
- Product weights on the table reflect the weights of products coated with hot dip galvanizing method.
- Standard lengths are 2500 mm and 3000 mm.
- Please contact to your customer representative for detailed information and for your demands with special dimensions.
